• Brytare Marshall

Marshall. red, ON-OFF

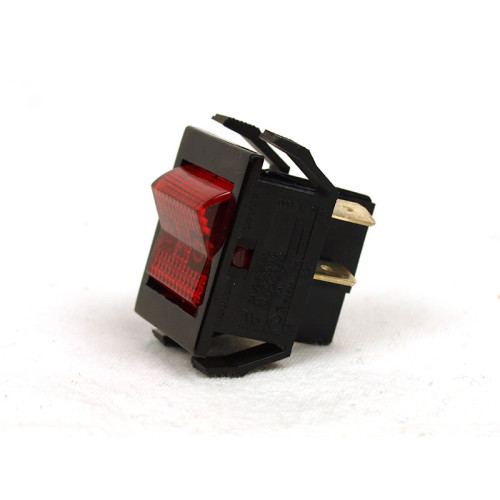

Powerswitch Marshall. lighted red,  DPST 2-polig

The 4-pin Marshall power switch can be wired to replace the earlier 5-pin type. The 5-pin type used an extra wire that connected the voltage selector switch to illuminate the neon bulb in the switch. In the 4-pin switch, the neon bulb is wired across terminals 11 and 24 (the brass terminals. Terminal numbering refers to the picture). This eliminates the need for the 5th wire. This wire can be completely removed from the amplifier when the new switch is installed.

Type:Powerswitch

 lighted red
Version:DPST
 ON-OFF
Recess:27 x 23 mm
 Snap-in mount
Termination Style:solder-lugs,
 quick connect terminals



Skriv en recension

OBS: HTML översätts inte!
    Dålig           Utmärkt

Brytare Marshall

  • Artikelnummer: 20-2pol-Mar R
  • Tillgänglighet: I lager
  • SEK 166,25

  • Exkl moms: SEK 133,00
